CMC Squid Rigging Plate (NFPA G Rated)

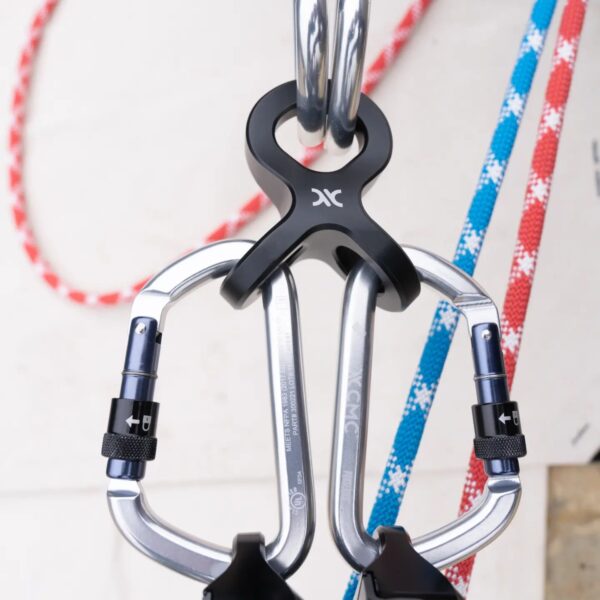

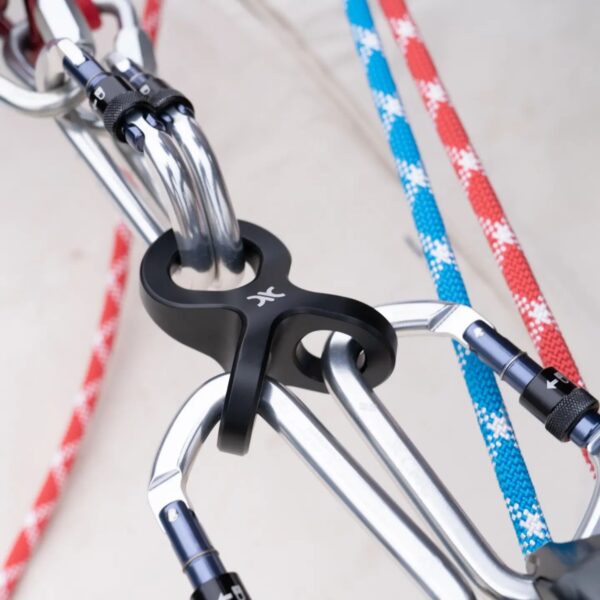

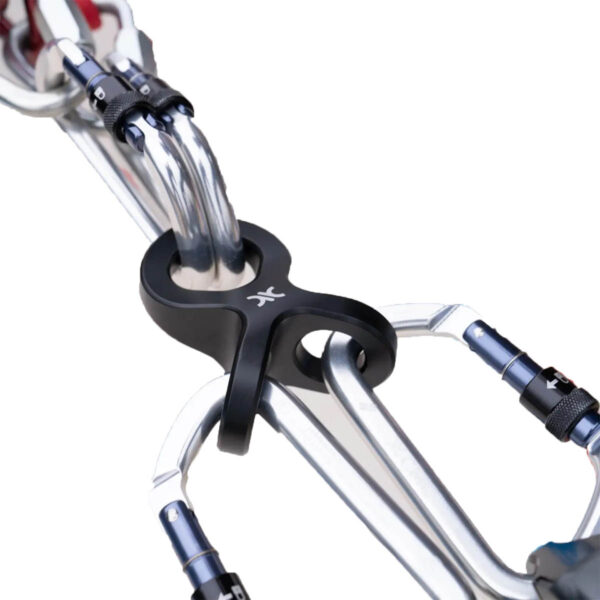

The CMC Squid is a simple and effective solution for building G-Rated twin tension rope systems (TTRS). Its multi-planar design features a large attachment point for redundant anchoring and two perpendicular points for optimal load-sharing.

Product price
Additional options total:
Order total:
Add to quote
SKU: CMC300020 Categories: , Tags: ,


Description

The Squid efficiently aligns two hardware devices side-by-side for dual operation and better shared tension. It also sets ideal spacing between devices, allowing a single operator to maintain simultaneous twin tension control using dual-handle technique (aka “shark finning” or “DOUBLE CLUTCHING”). The Squid promotes safe and efficient rigging of dual capacity TTRS and provides the key element for smooth raising and lowering in mirrored and nested systems.

It streamlines the rigging of redundant load-sharing systems. Its attachment points are compatible with a wide range of connection methods and it positions rope hardware for easy loading and unloading while connected. SQUID naturally orients toward the load and lets components move freely, reducing the risk of binding and mitigating extension in the event of anchor or line failure. Strong and compact, SQUID is a versatile tool for rigging TTRS, litter bridals, cross hauls, and more.

SQUID is CE marked, classified to NFPA General Use for specific configurations including TTRS, and classified to NFPA Technical Use when the secondary points are pulled apart from each other. Please note, the breaking strength of textiles may be reduced when directly connected to the SQUID. Follow best practices for load sharing and redundancy. Please refer to the textile data provided in the link below for details.

  • Multi-planar rigging plate with perpendicular attachment points
  • Optimizes device alignment for twin tension rope systems (TTRS)
  • Enables single operator control for better shared tension
  • Promotes smooth loading / unloading of connected hardware
  • Allows components to move freely and orient toward the load
  • Reduces shifting / extension in the event of line or anchor failure
  • Aligns secondary points for high strength and easy load sharing
  • Supports a variety of connection methods for versatile rigging
  • Provides large collection points for building redundant systems
  • Primary attachment point fits two (G) or three (T) carabiners
  • Secondary attachment points fit one (G) or two (T) carabiners
  • Simple and solid aircraft grade aluminum with no moving parts
  • Strong, compact, and lightweight for multiple applications

TECHNICAL SPECIFICATIONS

  • 3 Sigma MBS
    •  27.7 kN (NFPA T Configuration)
    • 40 kN (NFPA G Configuration)
  • Minium Hole Diameter:
    • Primary 3.6 cm / 1.42 in
    • Secondary: 2.7 cm / 1.07 in
  • Weight: 240 g / 0.52 lbs
  • Color: Black
  • Dimensions: 10.4 X 8.4 X 5.1 cm / 4.1 X 3.3 X 2.0 in
  • Material: Aluminum

CERTIFICATIONS / STANDARDS

  • NFPA
    • GENERAL USE (G) MBS 45 KN (10,116 LBF) – SPECIFIC CONFIGURATIONS
    • TECHNICAL USE (T) MBS 27.7 KN (6,227 LBF)
  • CE
    • PPE-R/RFU 11.114 VERSION 01
