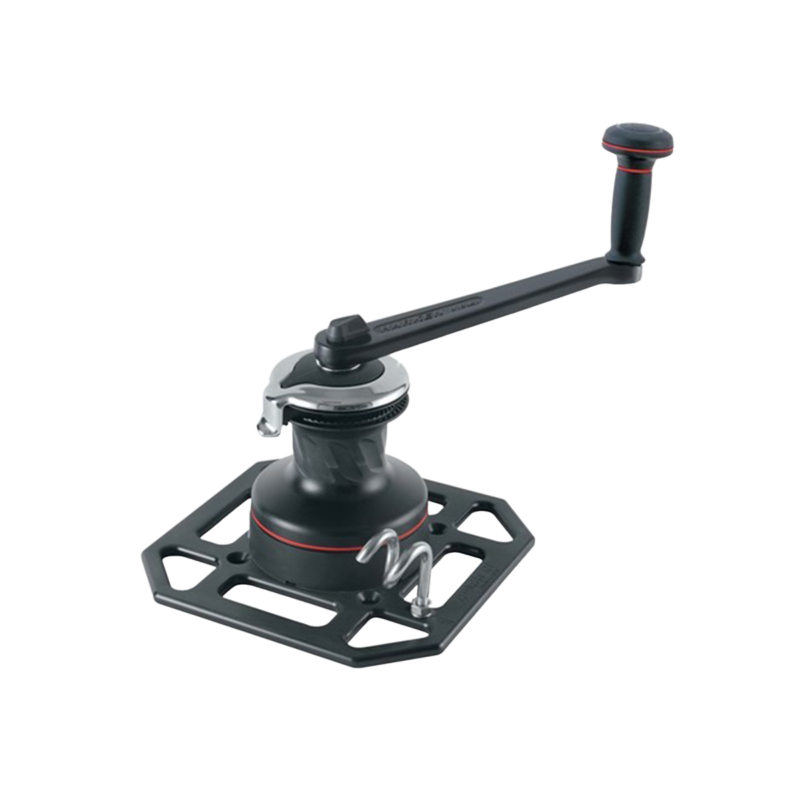

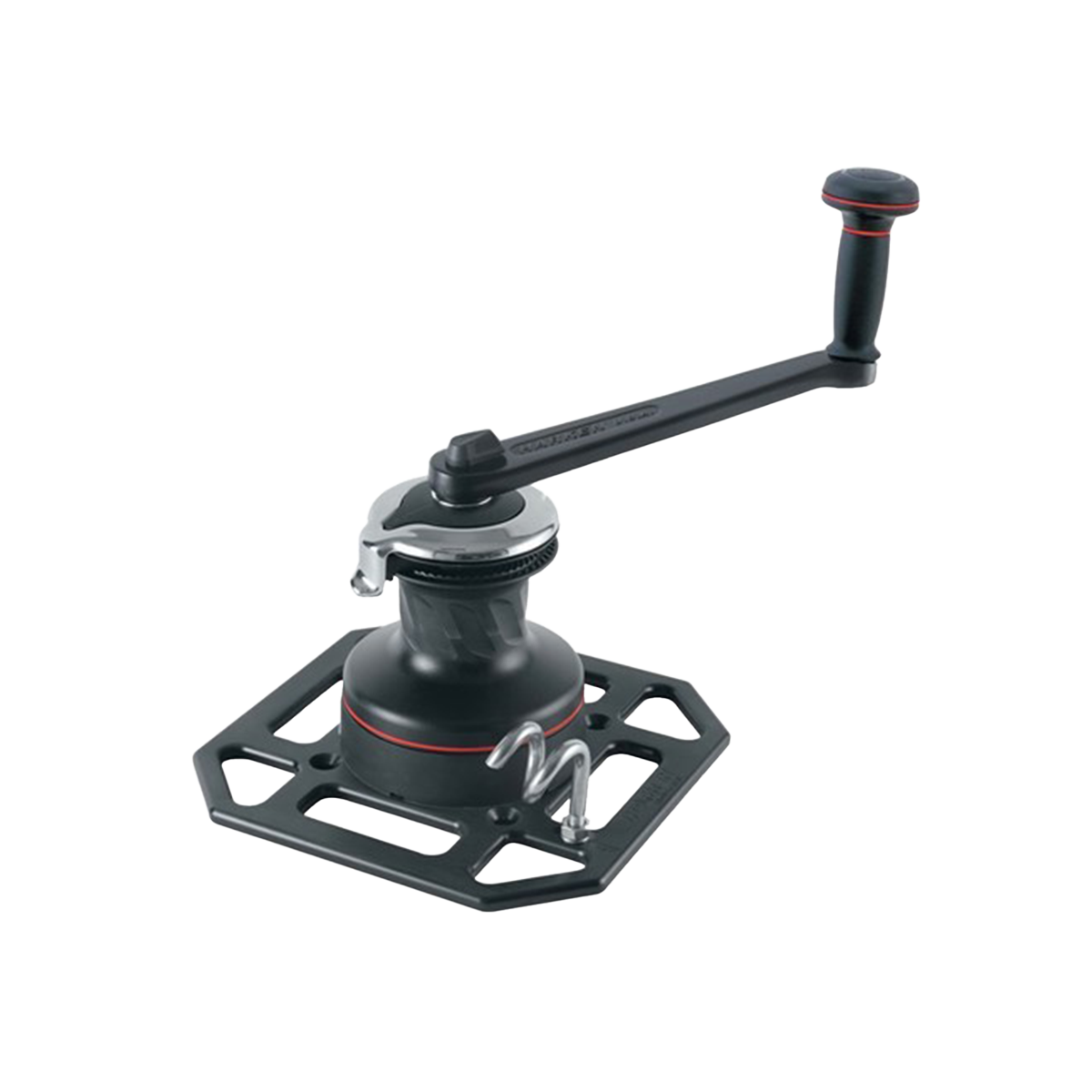

The Traction Winch 500 includes:
- Traction Winch 500 includes:
- Universal mounting plate
- 40.2 Harken winch and
- 10 inch winch handle
- The mounting plate is sculpted to remove excess weight and provides multiple attachment points without compromising strength. The pigtail line lead ensures correct alignment and loading of the winch for maximum efficiency.
- The winch is designed for use with fiber rope up to 12 mm (1/2″) in diameter, reducing weight and allowing alignment to the load. The unique drum design maximizes grip on the rope, while the drum’s smooth surfaces reduce rope wear.
- Feature 17-4 PH stainless steel load-carrying gears and pins for strength and durability
Technical Specifications
| Maximum Working Load | 4.9 kN |
| Rope Compatibility | 8 – 12 mm |
| Weight | 6 kg |
| Power ratio with 254 mm/10″ winch handle | 13.5:1/39.9:1 |
