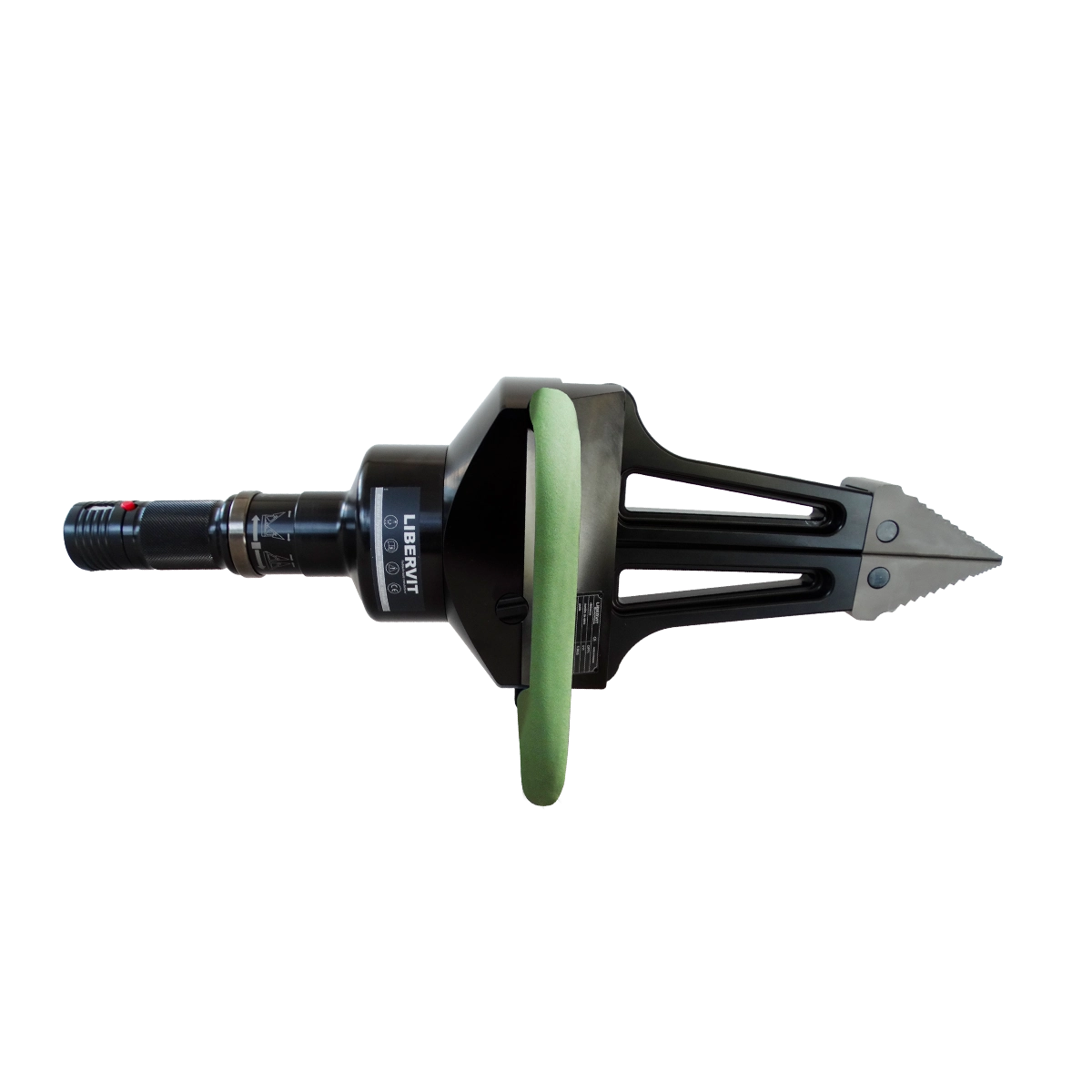

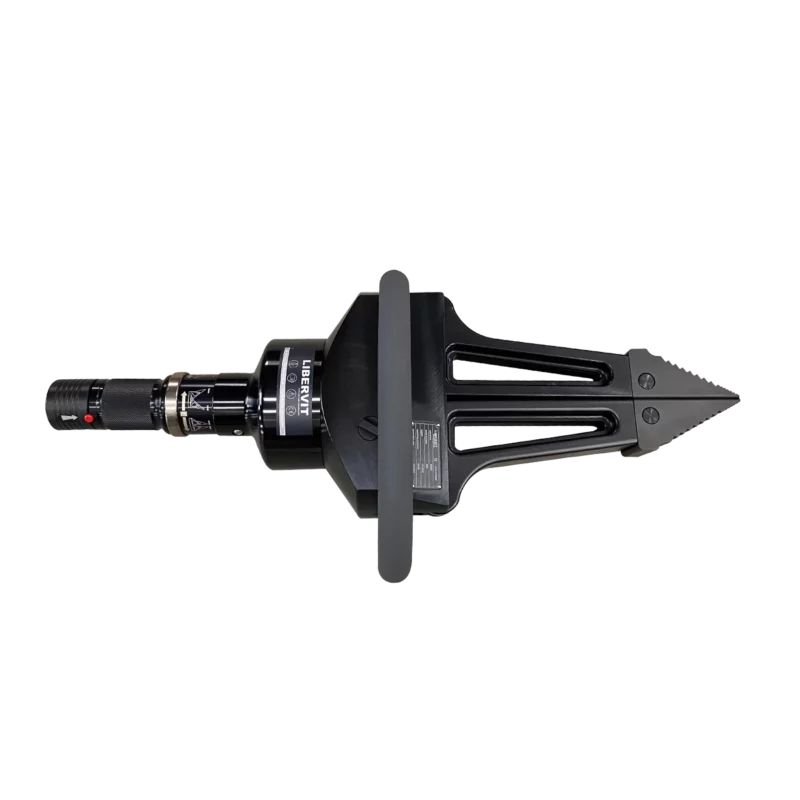

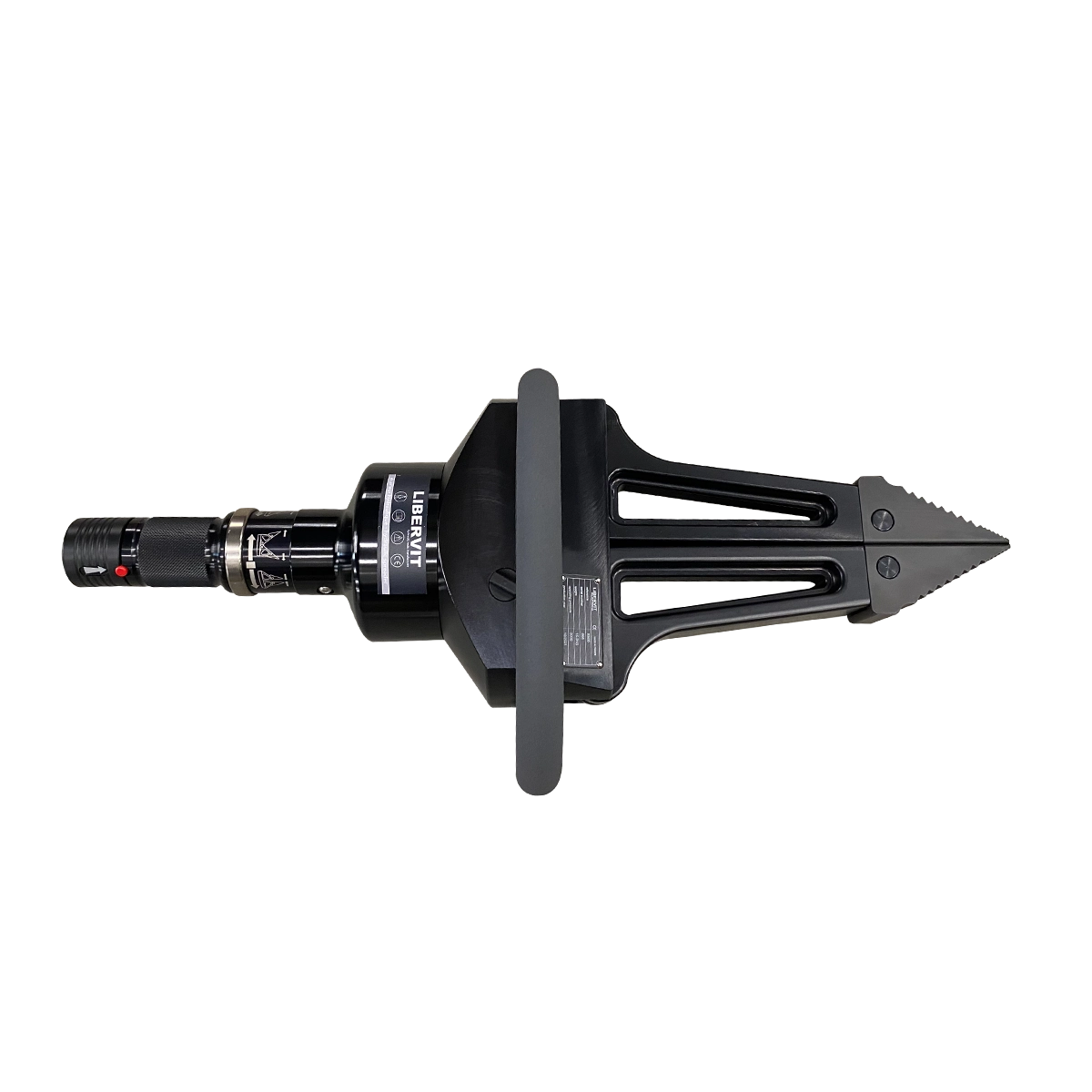

he Libervit E500 hydraulic spreader provides high-strength mechanical displacement for tactical breaching, forced entry, and emergency rescue operations. Built with durable long arms, the E500 achieves deep structural penetration to overcome reinforced barriers and wide obstacles.
Key Features & Operational Performance
- Extended Arm Geometry: Long-arm construction expands up to 500 mm (19.5 inches) for wide-profile spreading tasks.
- Consistent 50 kN Thrust: Delivers 50 kN of continuous hydraulic force to defeat security fixtures and heavy structural barriers.
- Flexible Hydraulic Power: Connect the spreader to any standard LIBERVIT hydraulic power unit or pair it with a LIBERVIT manual hand pump using an adapted hydraulic hose.
- Dual Handling Control: Features an integrated transport handle and an ergonomic service handle to ensure precise handling under challenging operational conditions.
Field Applications
- Forcing inward-opening doors
- Spreading and displacing security window bars
- Breaching commercial metal rolling shutters
- Specialized high-strength spreading applications during tactical entry and rescue operations
Technical Specifications
| Maximum Arm Opening | 500 mm / 19.5 in |
| Maximum Thrust | 50 kN |
| Weight | 15.2 kg |
| Dimensions | 680 x 270 x 170 mm / 27 x 11 x 7 inch |
| Transport Handle | included |
| Service Handle | included |
