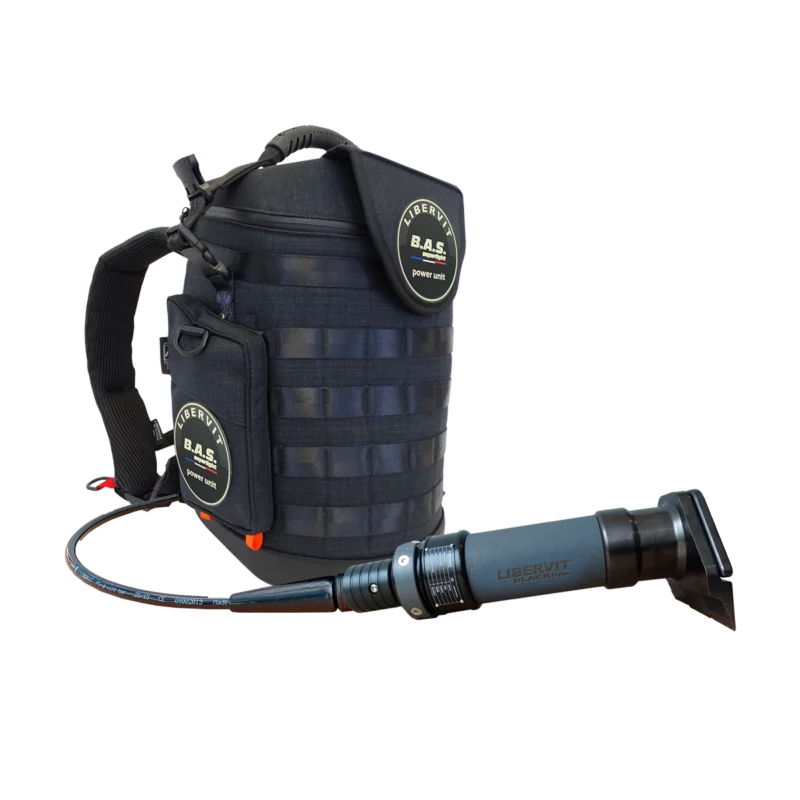

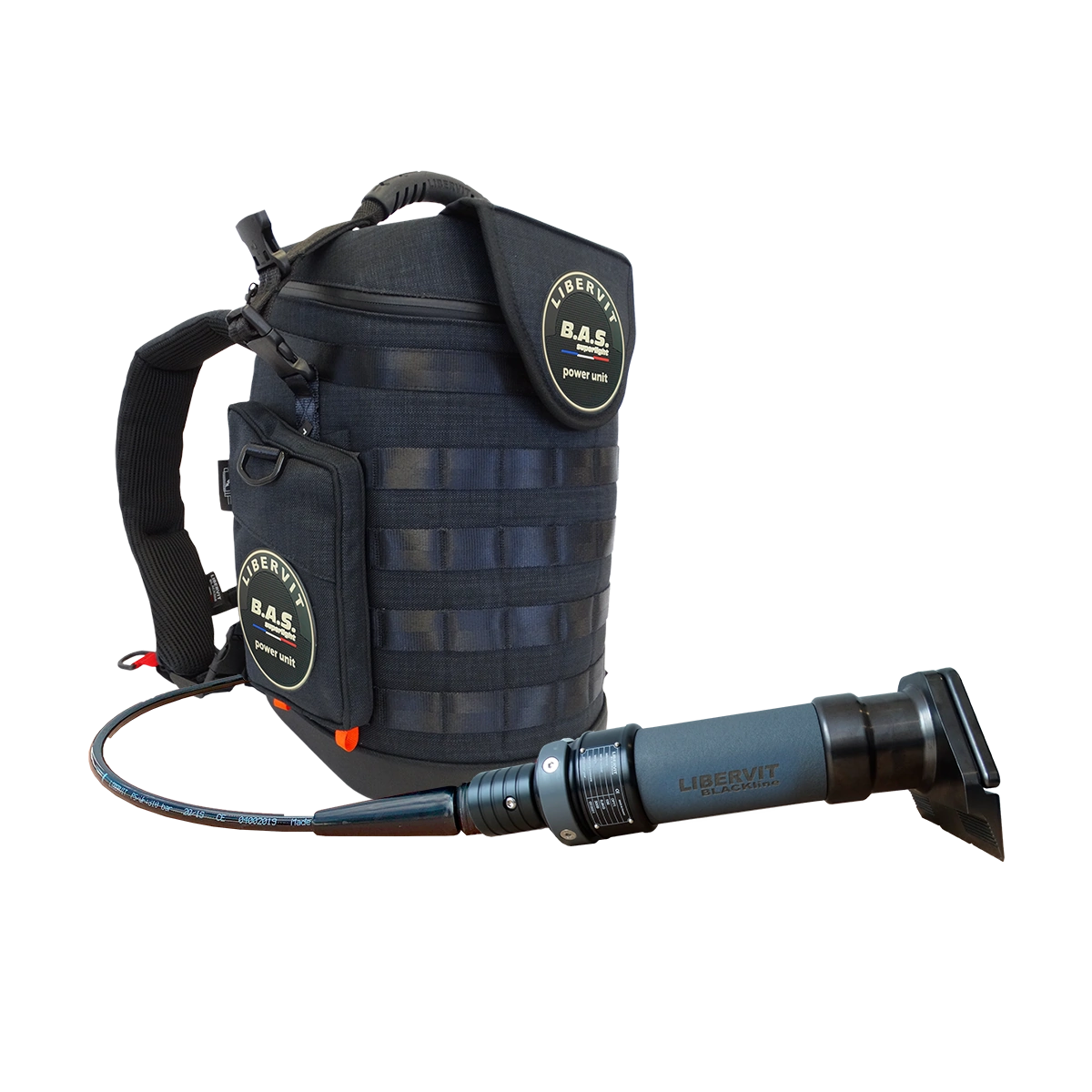

B.A.S. Superlight Hydraulic Unit
Compact, light, and silent, the B.A.S. superlight hydraulic unit powers all LIBERVIT hydraulic tools from the LIBERVIT BLACKline and LIBERVIT DEFENSE ranges. Designed for difficult access areas, it keeps your hands free while offering maximum versatility and performance.
Core Specifications & Features
- Battery Life: 48V lithium battery offering 120 minutes of working time per tool.
- Hose: Integrated 1.5 m hydraulic hose.
- Dashboard: Protected by a removable flap, providing access to the start-up switch and a battery charge status indicator.
- T360 Technology: Allows the unit to be used and stored in all positions while retaining all performance capabilities.
- Remote Control:
- Includes a hand remote that easily converts between wired (3m range) and wireless (30m range) configurations.
- Maintains essential operator safety distance from trapped doors or armed assailants. The remote features a battery indicator and long-lasting batteries that recharge directly from the hydraulic unit, requiring no mains power.
- Smart Maintenance: Features a built-in transmitting data system for preventive maintenance. Users can perform a complete equipment diagnosis via the “LIBERVIT connected” app (downloadable from the Google Play store).
Portability & Comfort
- Hardware: Equipped with reinforced polyacetal quick-release buckles.
- Maintenance: The backpack panel and harnesses are completely removable and washable.
| Weight | 11 kg |
| Dimensions | 15.5 x 11.5 x 10 in |
| Battery Maximum Charge Time | 35 min to 100% charge |
| Battery Autonomy | 2 hours of tool use (w/ 150 bar average pressure) |
| Integrated Hose Length | 5 ft |
| Oil Tank Capacity | 1.24 L |
| Service Pressure | 300 bar |
| Decibels | 48 dB (at 5 m distance) |
OP71 Hydraulic Door Opener
The OP71 hydraulic door openers ensures quick and silent opening of inward opening doors, gates, shutters, sliding curtains and also outward by acting as a spreader. For power supply, the OP71 requires one of the LIBERVIT hydraulic power units or a hand pump. To connect it to the hand pump an adapted hydraulic hose is needed.
Performance & Operation
- Push Force: Delivers a powerful 78 kN push force to overcome difficult doors.
- Deployment: Features a 262mm stroke, activated by a convenient switch located at the end of the handle.
Power & Compatibility
- Power Supply: Requires connection to a LIBERVIT hydraulic power unit or a manual hand pump.
- Connection: An adapted hydraulic hose is required when connecting the unit specifically to a hand pump
| Weight | 13 lbs |
| Dimensions | 14 x 5.5 x 5 in |
| 1st Stage Thrust | 7.2 tons |
| 2nd Stage Thrust | 2.8 tons |
| Jack’s Stroke | 10 in |
| 1st Stage Stroke | 6 in |
| 2nd Stage Stroke | 4.5 in |
