- Designed for experienced users working in rope access and technical rescue
- Easy to use:
– Markings and rope guide make it quick and easy to install the rope
– Ergonomic handle provides good grip and excellent descent control
– Moving side plate can be opened while the device remains connected to the harness, making it easier to pass intermediate anchors
– The AUTO-LOCK system allows users to easily position themselves at a workstation without having to manipulate the handle or tie off the device
– Handle automatically switches to storage position when the rope is removed from the device, reducing the risk of accidental snagging when the descender is carried on the harness - Versatile:

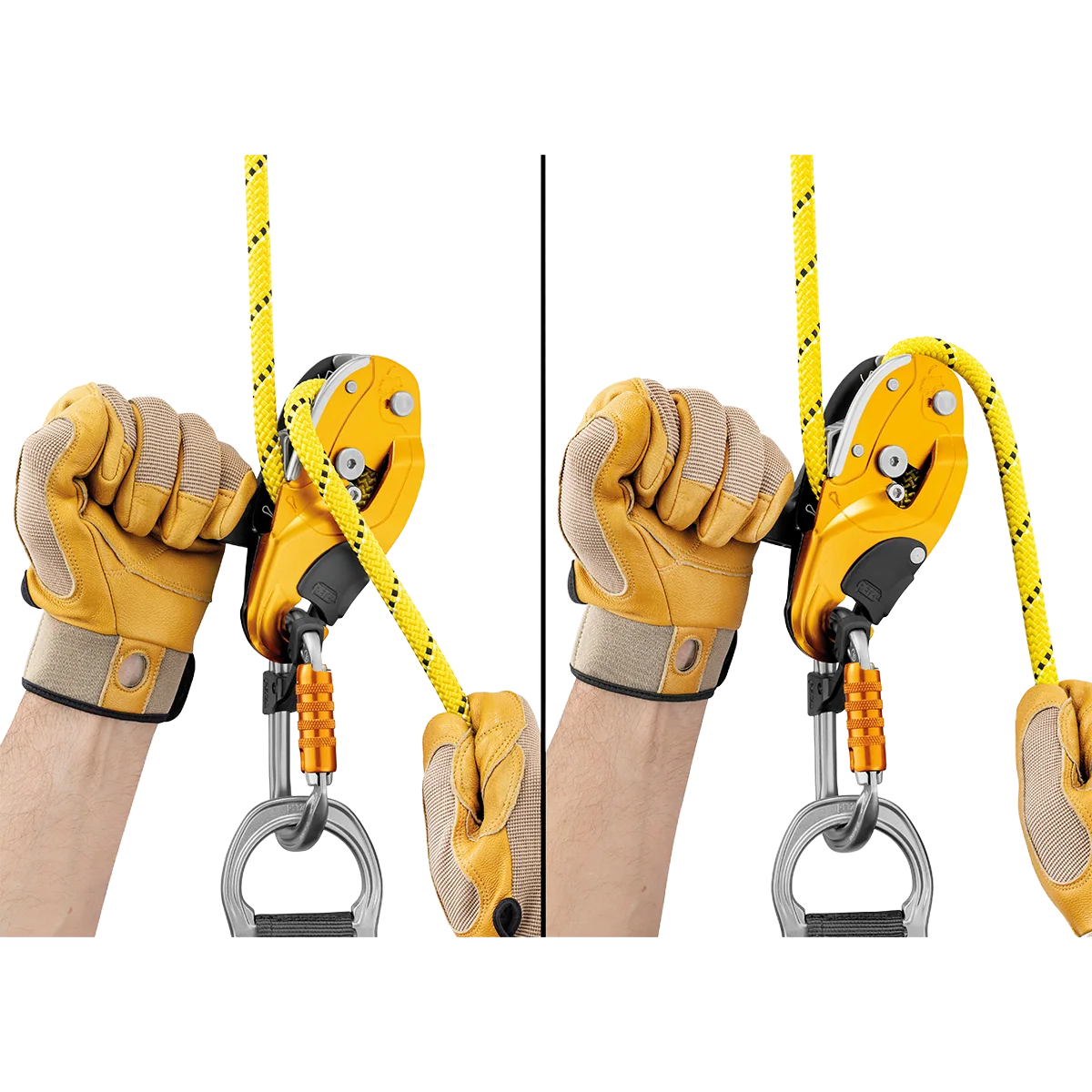

– Two possible descent modes: with the rope running over the side plate or in the V-shaped friction channel, which provides better descent control and helps keep the rope from kinking
– Can be used connected to the harness or to an anchor
– Once the rope is blocked, it is possible to ascend in short spurts without manipulating the handle by simply pulling the rope through the device
– Can be used to belay a lead with techniques used in climbing - Durable and repairable:
– Reinforced protection on the rope friction zone helps prevent premature wear on the moving side plate
– Cam shape improves rope pinching and limits wear on the device

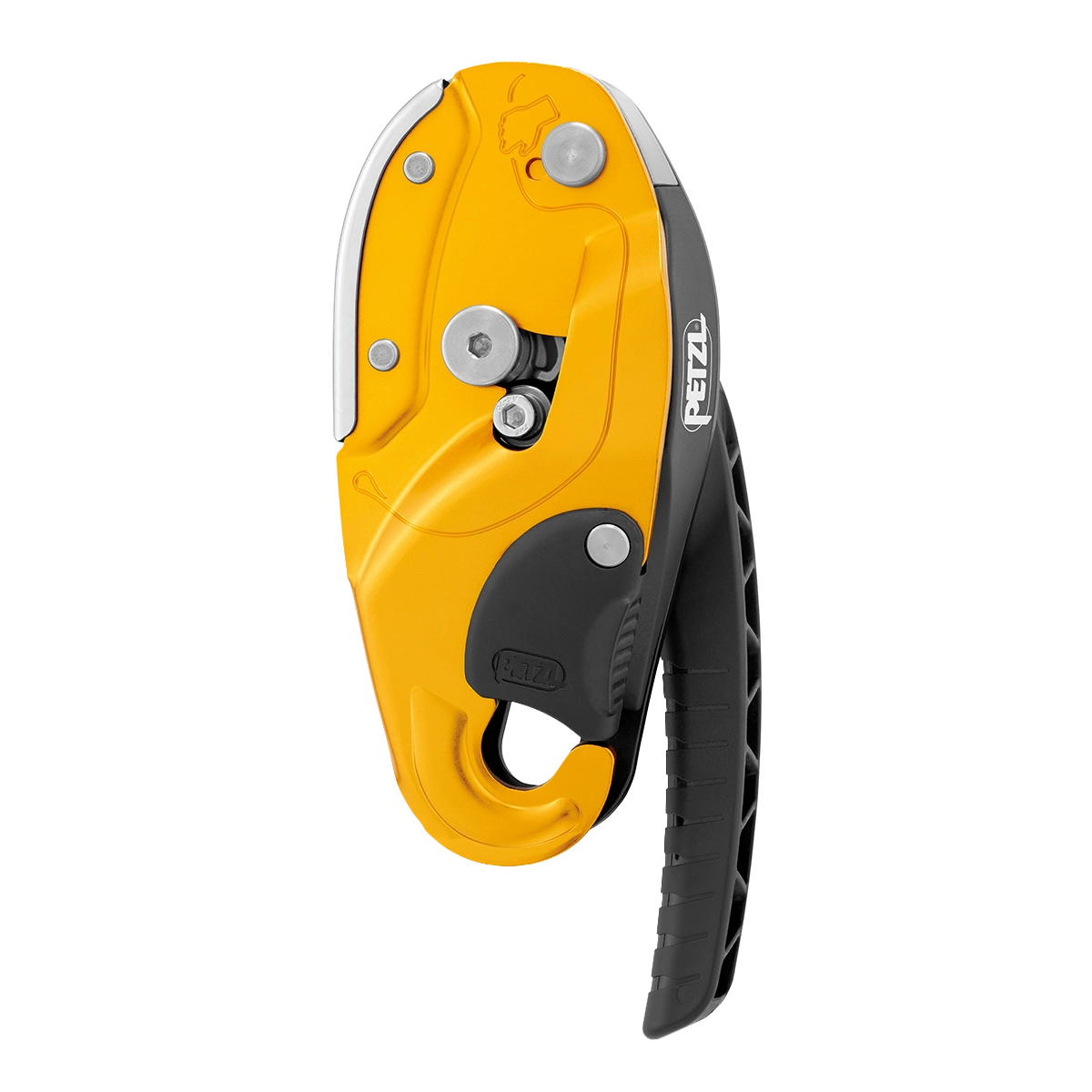

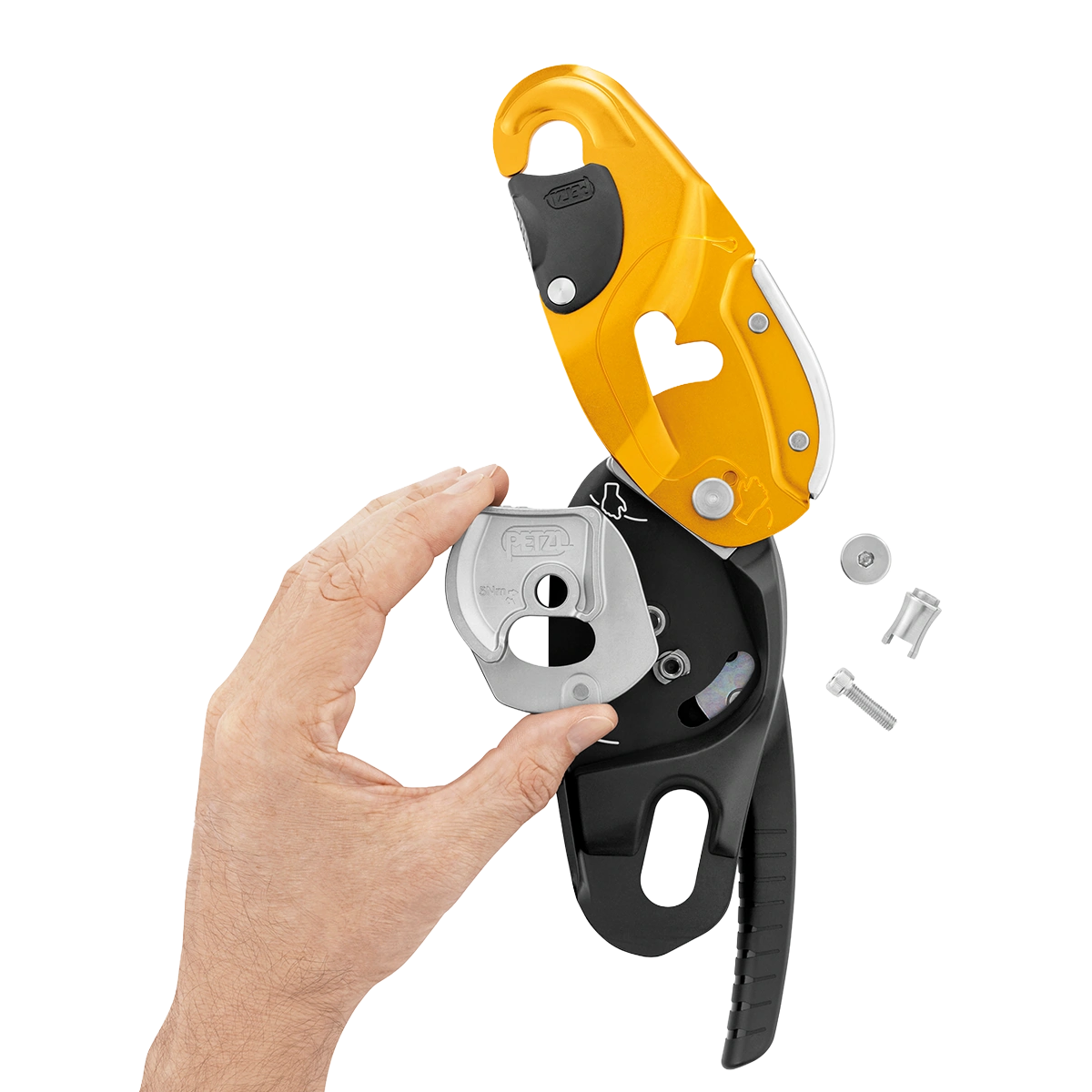

– For a longer-lasting solution or to account for intensive use and demanding work conditions, the RIG is also available in a repairable version (D021BA00 / D021BA01); replace the cam and pin using the repair kit (sold separately, D021CA00)
Technical Specifications
| Rope Compatability | 9.5 – 11.5 mm |
| Working load limit for 1 person | 140 kg (see Instructions for Use). |
| Working load limit for two people | 200 kg in rescue situations (see Instructions for Use). |
| Weight | 406 g |
| Materials | Aluminum, Steel, Nylon |
Certifications
| NFPA 2500 Technical Use |
| ANSI Z359.9 |
| ANSI Z459.1 |
| CE EN 15151-1 |
| CE EN 341 type 2 class A |
| CE EN 12841 type C |
| GB/T 38230 II A |
| XF 494 : FZL-X-Q10/11.5 |
