- Designed for maximum simplicity when setting up haul systems or tyroleans for work at height or rescue:

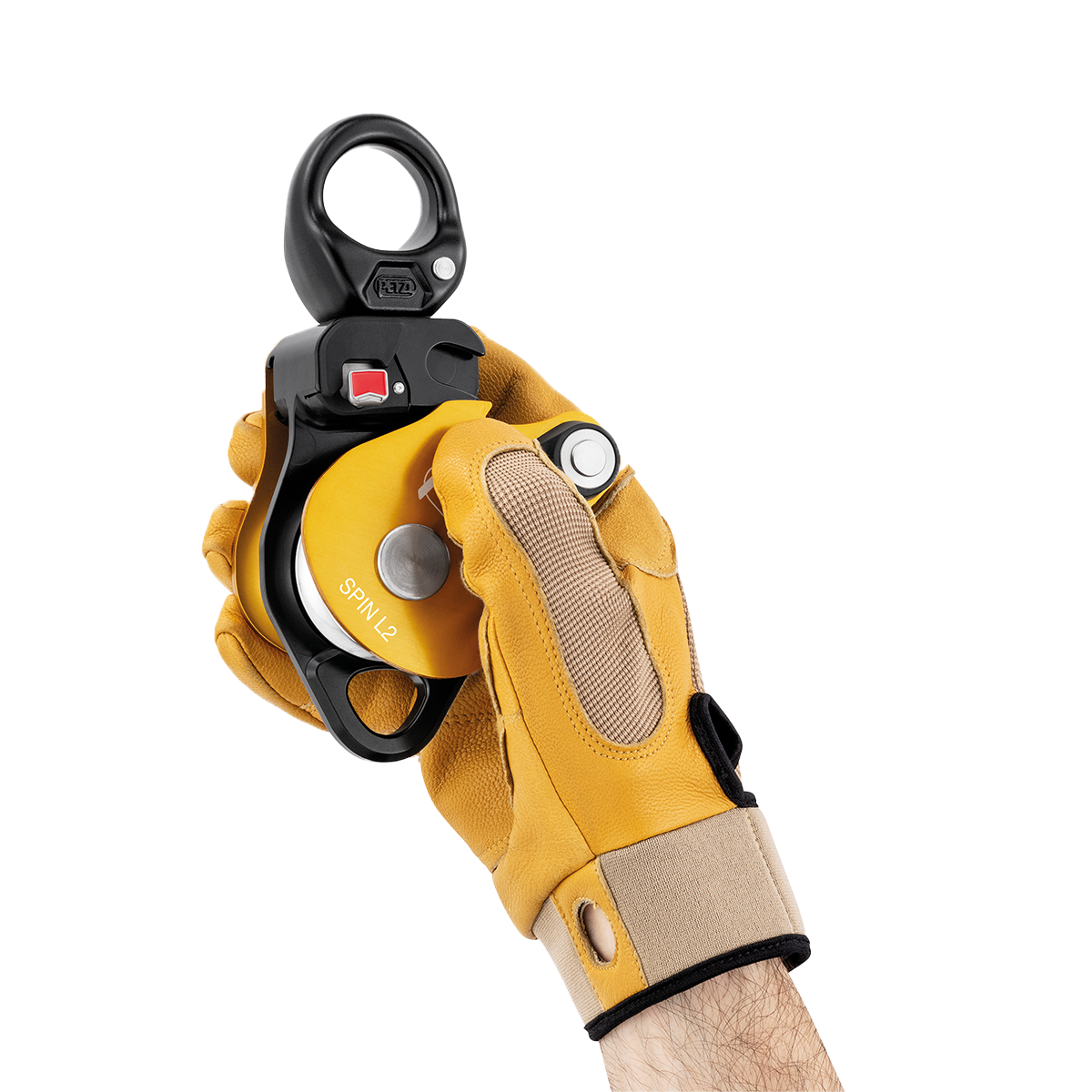

- triple-action opening of the moving side plate is quick and easy, even with gloves

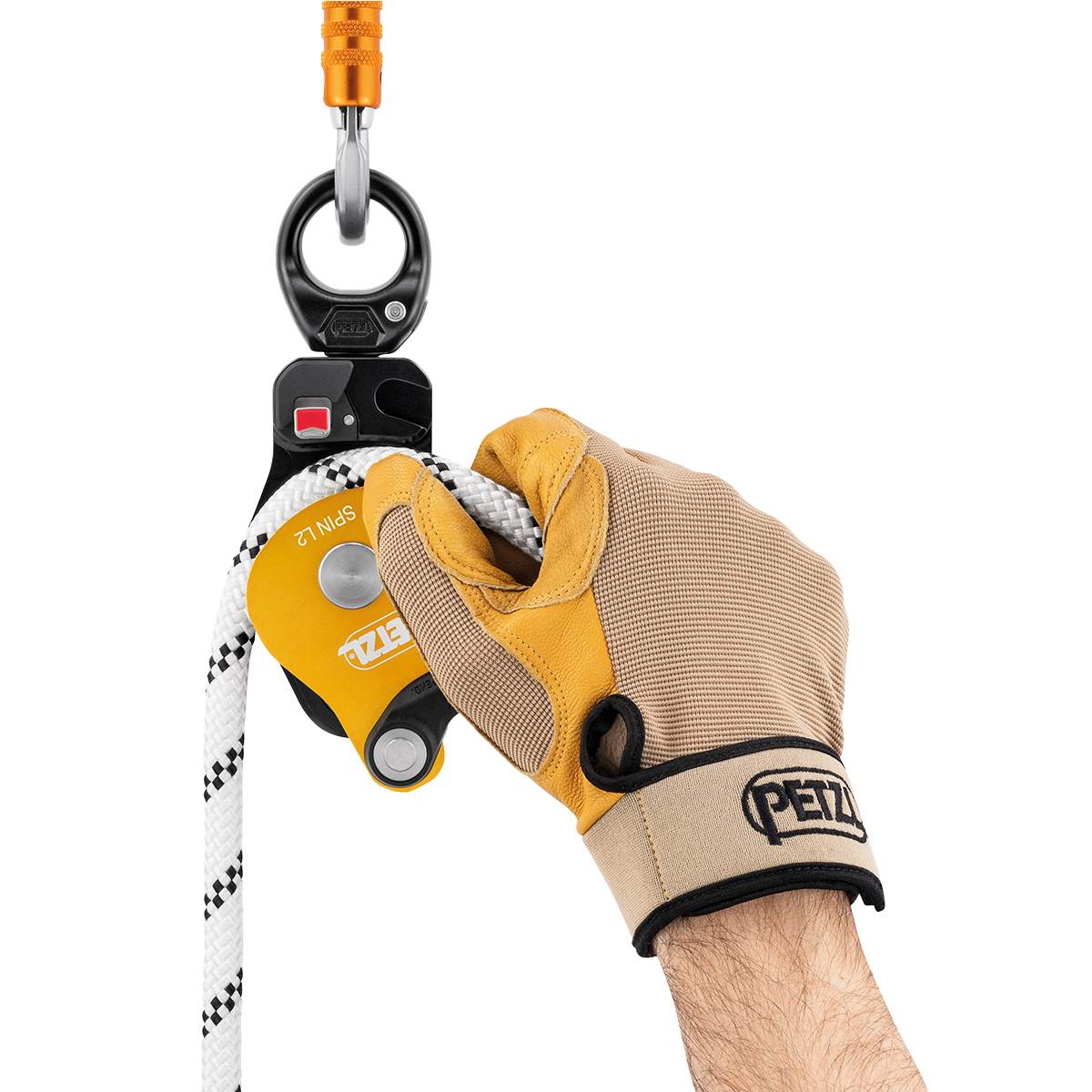

- the rope can be installed with the device connected to the anchor.

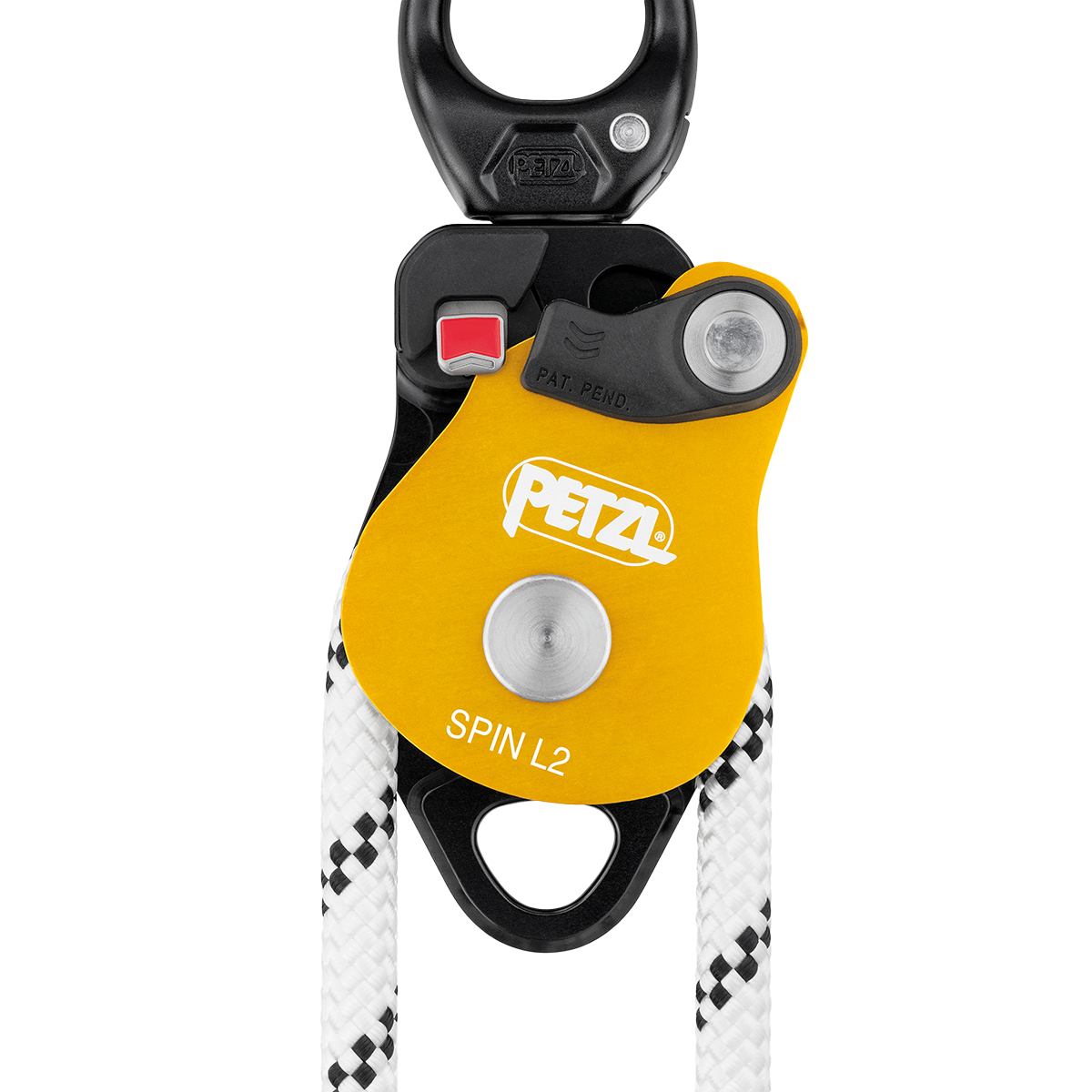

- red mark provides a visual warning when the moving side plate is unlocked
- special side plate design protects the rope path
- Optimal efficiency:
- large diameter sheaves mounted on sealed ball bearings for excellent efficiency

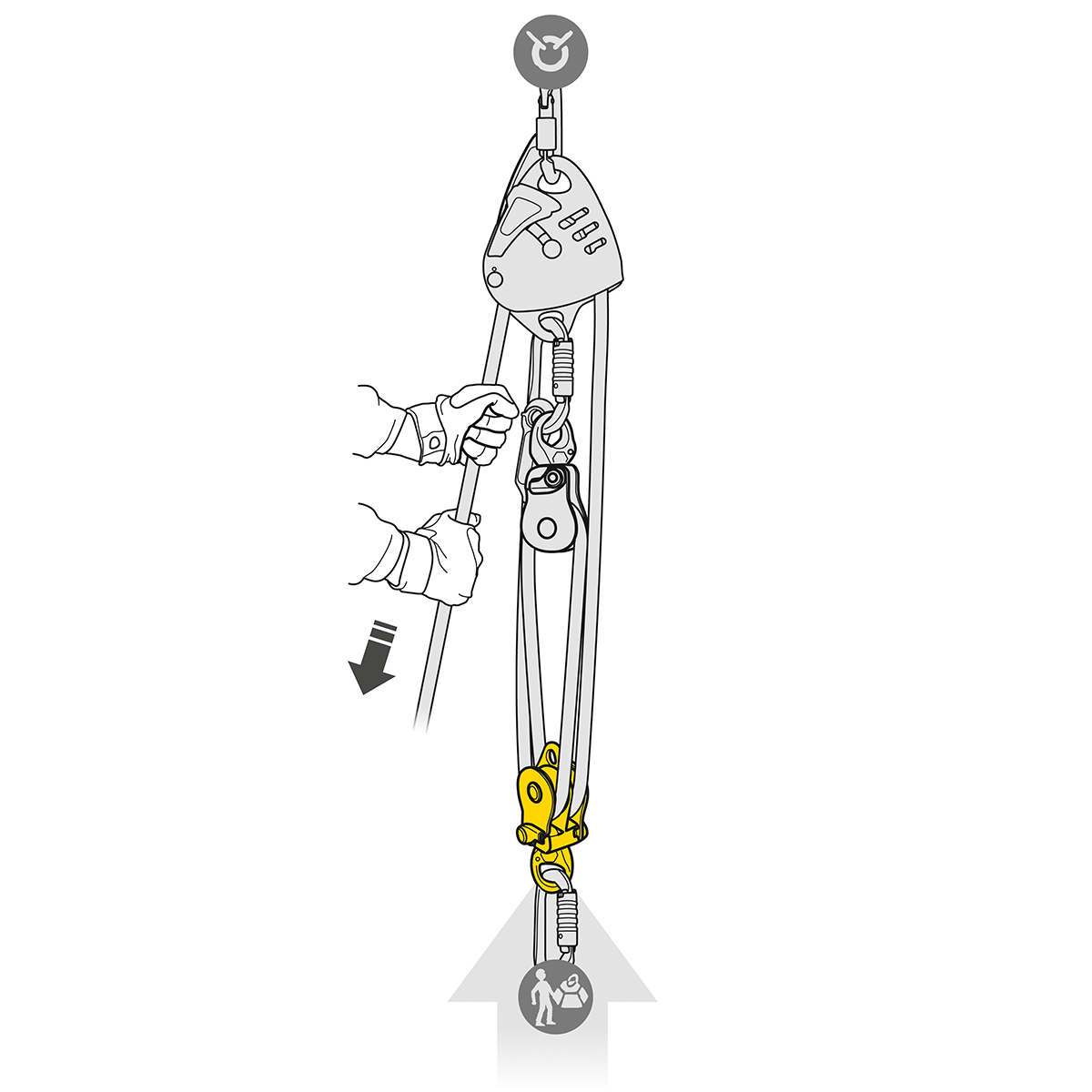

- Parallel-mounted sheaves and auxiliary attachment point for setting up various types of complex haul systems
- Easy handling:
- swivel allows pulley to be oriented under load
- swivel accepts up to three carabiners
- swivel and auxiliary attachment point allows the use of ropes and slings to facilitate maneuvers.
Technical Specifications
| Rope Compatibility | 7 – 13 mm |
| Breaking Strength | 36 kN |
| Maximum Working Load | 8 kN (3 kN per strand) |
| Breaking Strength – Rope Clamp | 4 kN |
| Efficiency | 95% |
| Weight | 480 g |
| Sheave Diameter | 38 mm |
