- Drop-resistant and easy to operate:

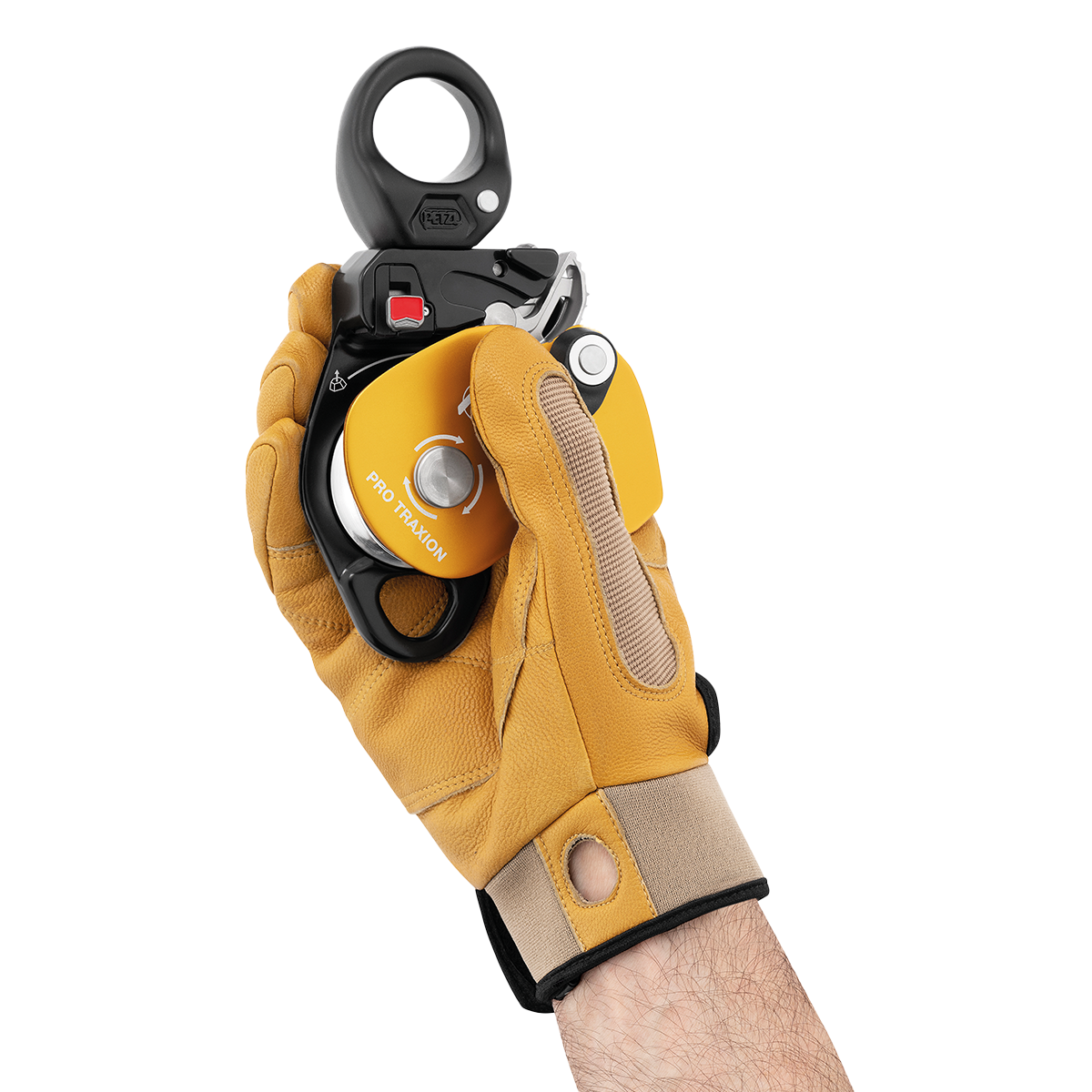

- Triple-action opening of the moving side plate is quick and easy, even with gloves

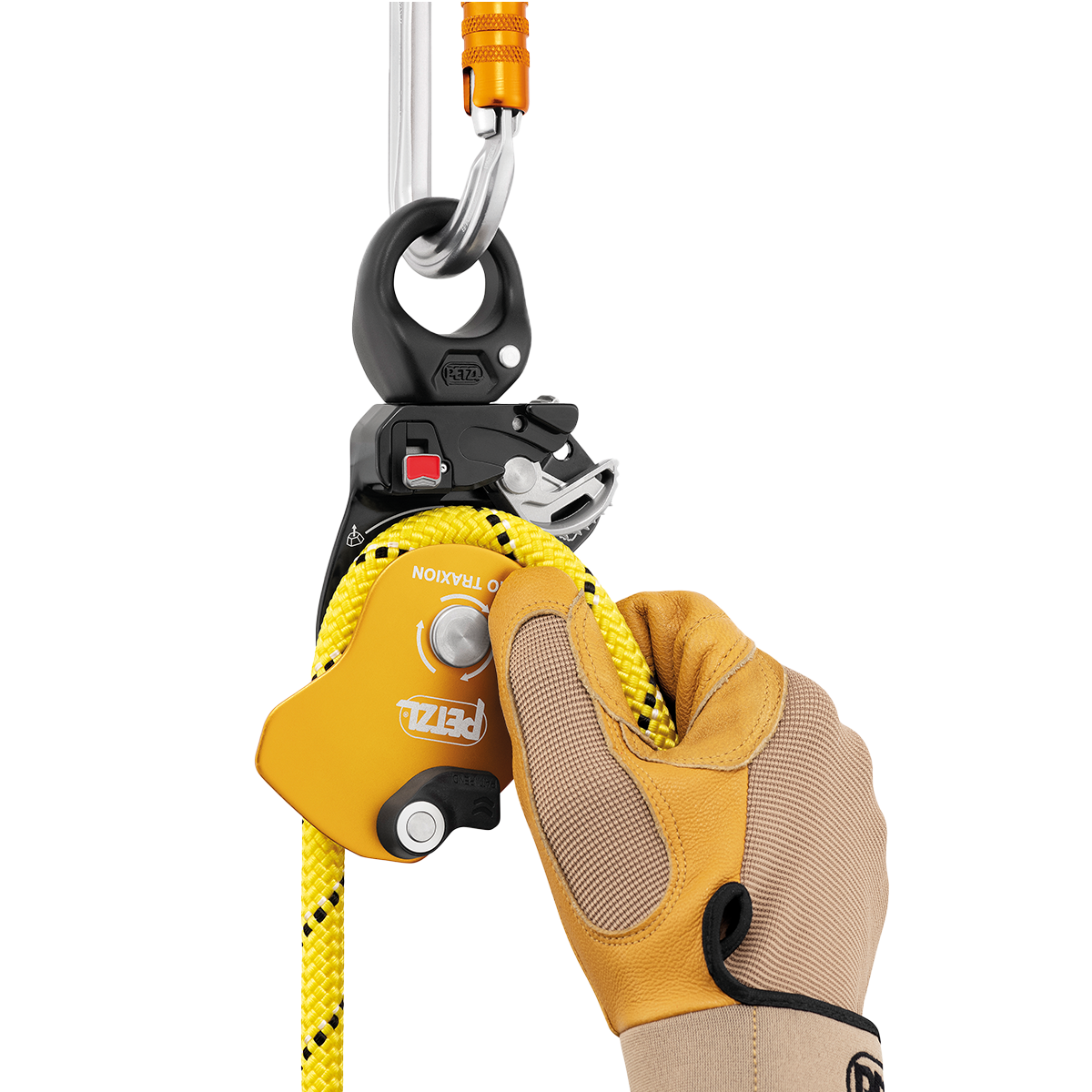

- Rope can be installed when the pulley is connected to the anchor
- Red indicator provides a visual warning when the moving side plate is unlocked
- Special side plate design protects the rope path
- Designed for hauling heavy loads:
- Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency
- Swivel allows pulley to be oriented under load
- Versatile:

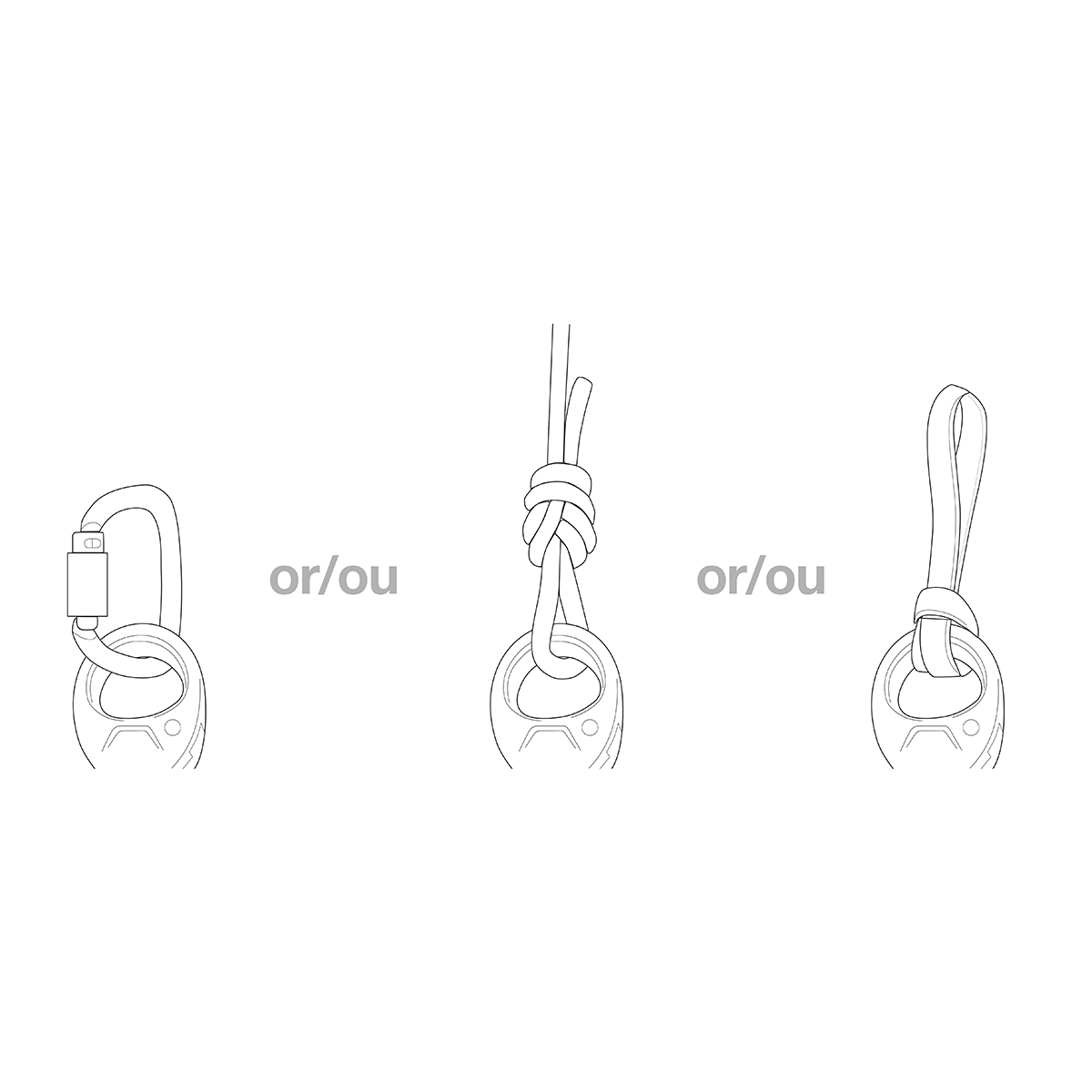

- Swivel and auxiliary attachment point allow the use of carabiners, ropes, and slings for easier rigging

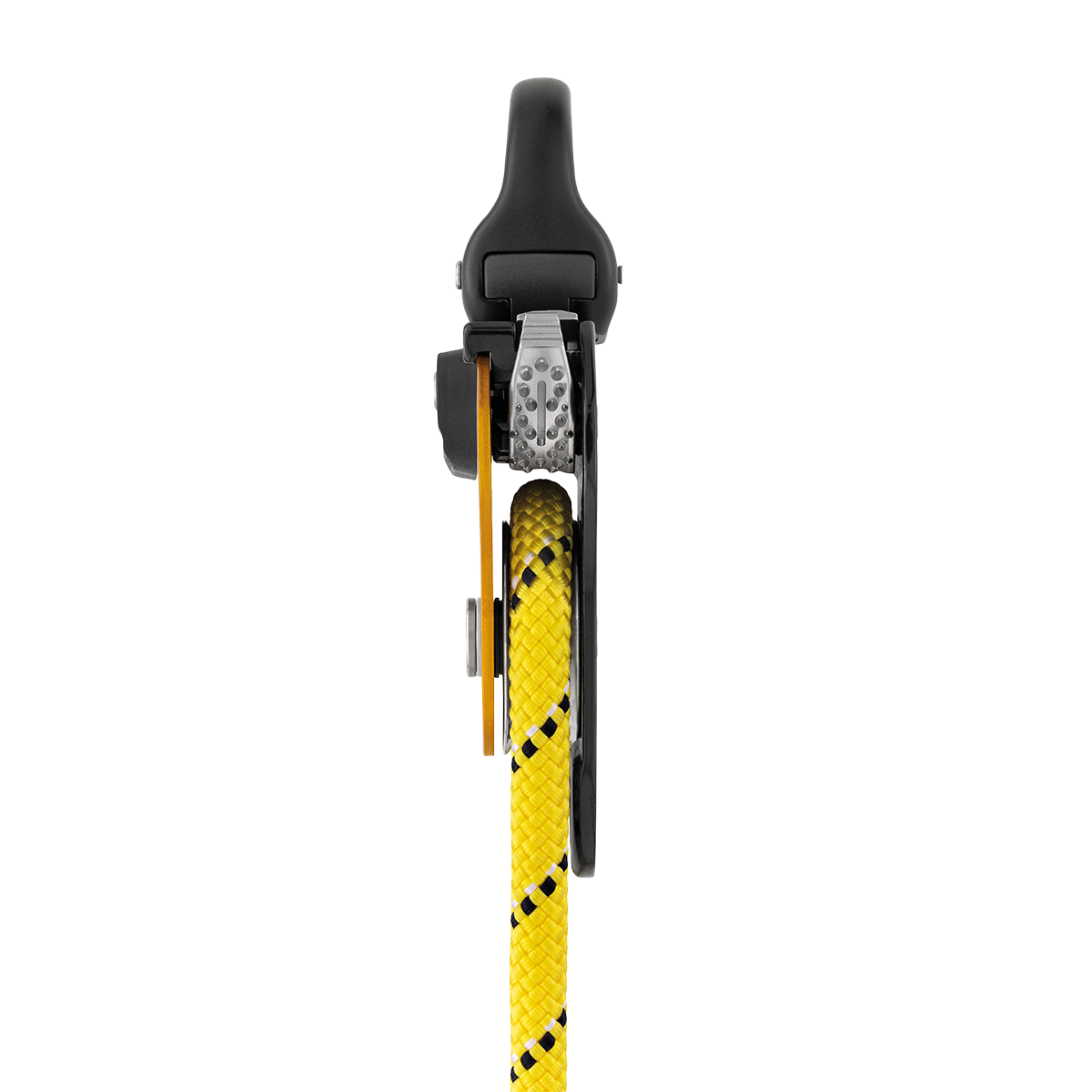

- Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
- May be used as a simple pulley by locking the cam in the raised position
- Auxiliary attachment point can be used to set up a haul system
- Hole in the cam for installation of a remote control cord
Technical Specifications
| Rope Compatibility | 8 – 13 mm |
| Breaking Strength – Pulley | 23 kN (11.5 kn x 2) |
| Breaking Strength – Rope Clamp | 4 kN |
| Efficiency | 95% |
| Weight | 295 g |
| Sheave Diameter | 38 mm |

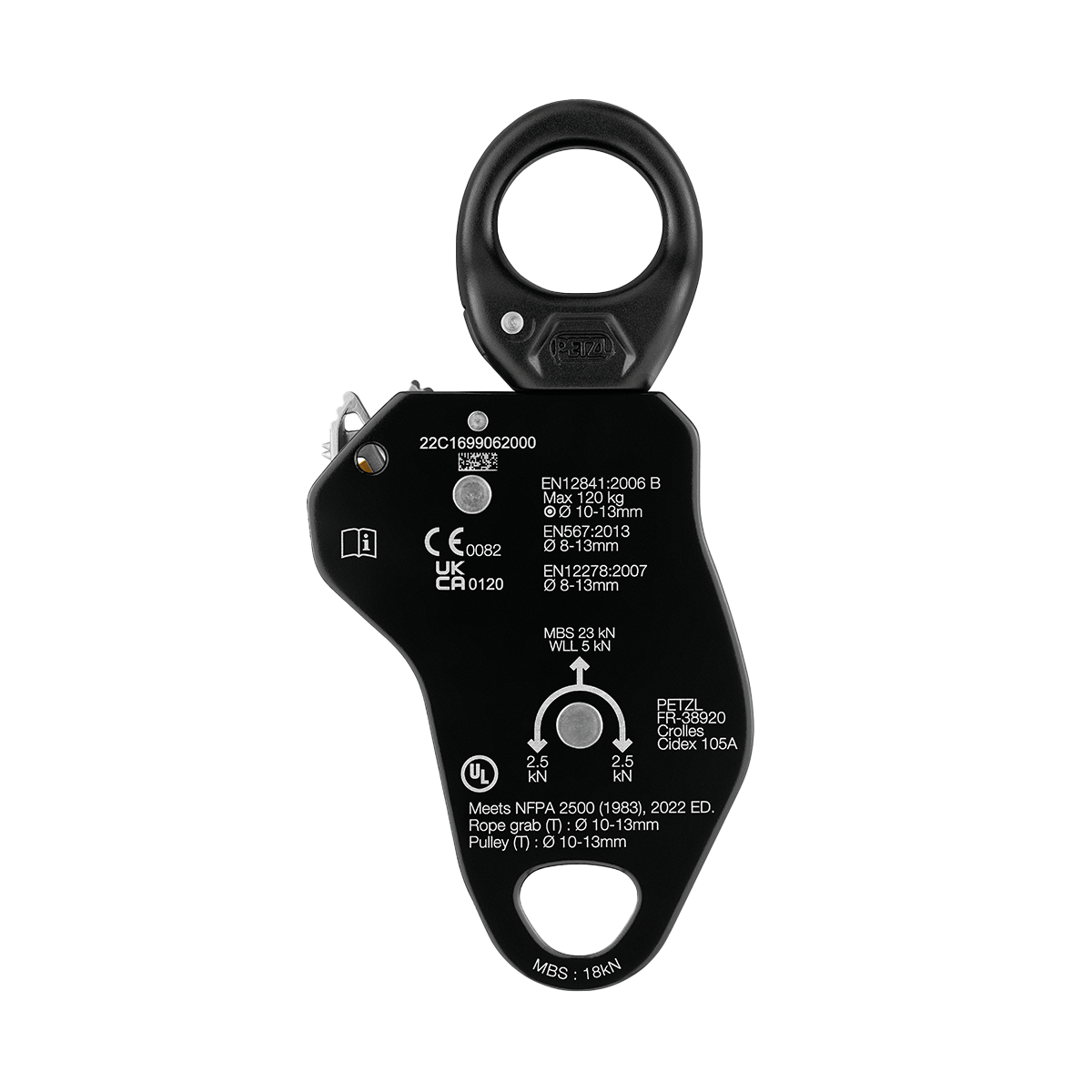

Certifications
| NFPA 2500 Technical Use (pulley and rope grab) |
| CE EN 567 |
| CE EN 12278 |
| CE EN 12841 type B |
| UKCA |
