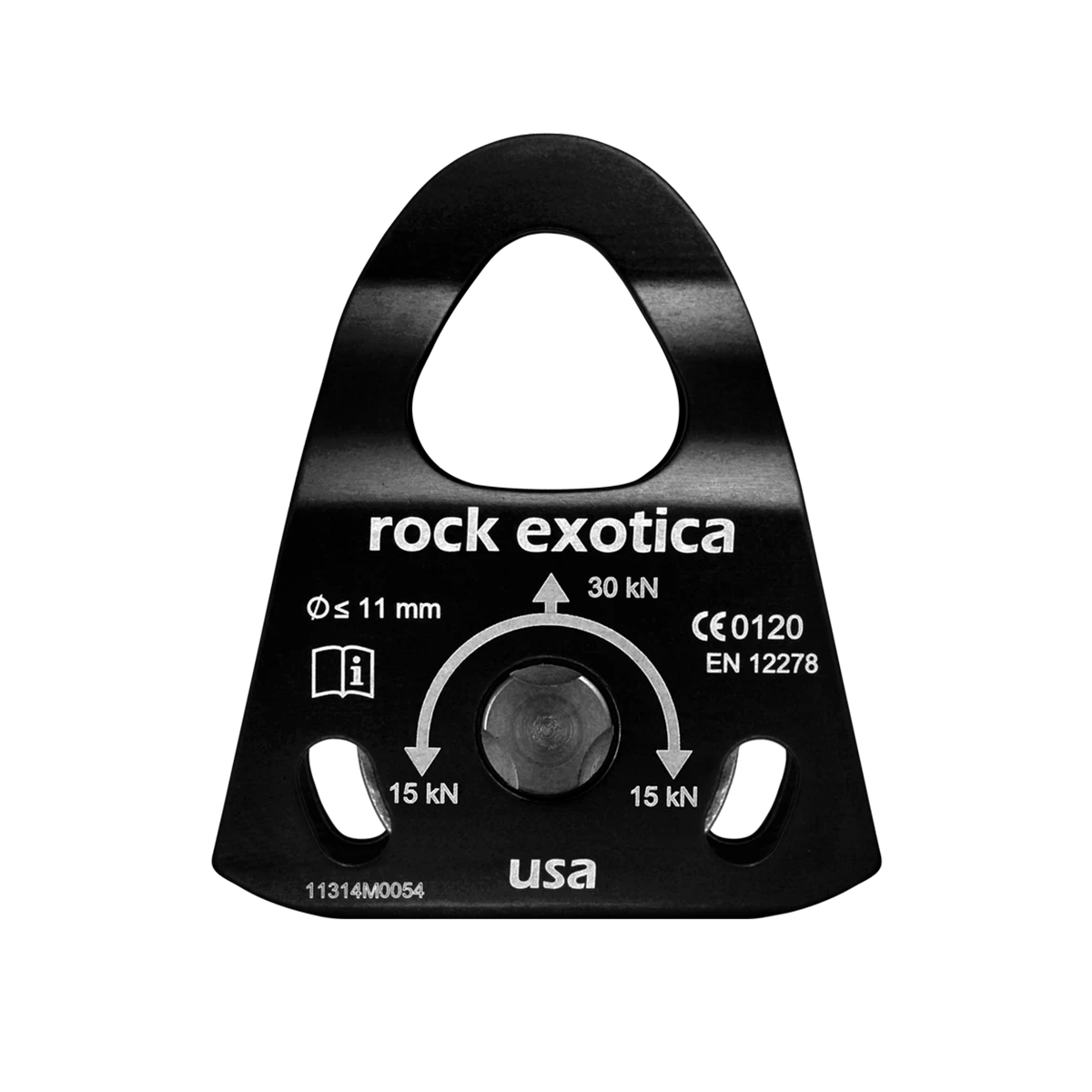

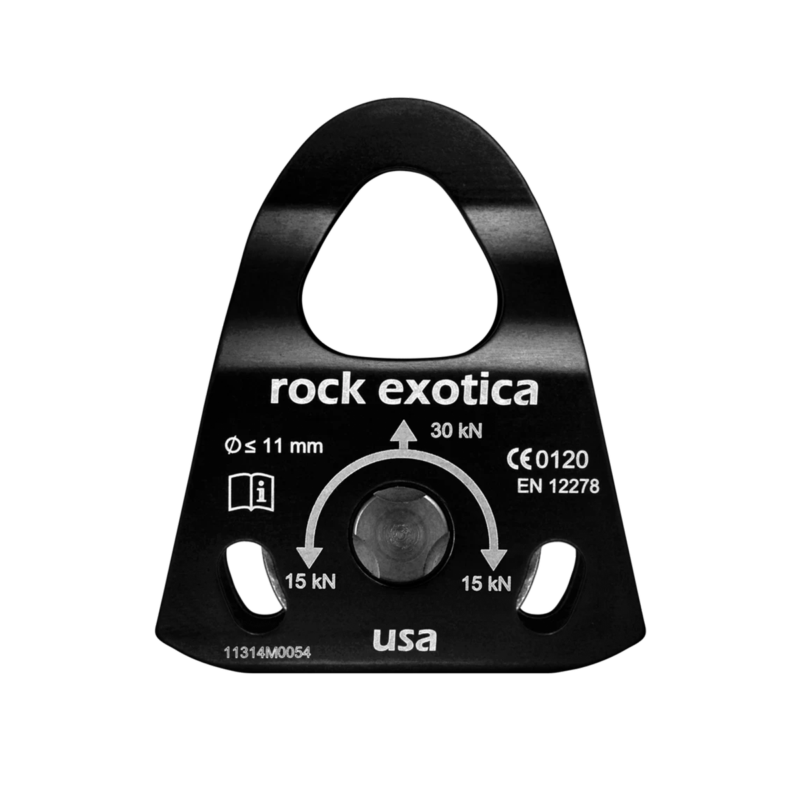

Rock Exotica 1.1″ Machined Mini Pulley

$104.80 $175.89Price range: $104.80 through $175.89

The Machined Mini Pulley are designed and manufactured like no other pulley in the world. Starting as a block of solid T6 aluminum, the side plates for the pulley are milled in such a way to leave material where it’s needed most for strength. And because the side plate starts out of as a solid block, the axle for the pulley is left as an integrated part of the side-plate, further adding to its strength and overall rigidness.

Free shipping within Canada on all orders over $500

The integrated axle also allows the pulley to use a custom manufactured threaded bolt which is countersunk into the sideplate, giving the pulley a unique snag-resistant profile. These one-of-a-kind features are the basis for the Machined Pulley’s impressive strength, slim profile and a quality of manufacture that is second to none.

  • Recessed axle screw sits flush to pulley sideplates, creating slim, snag-free profile.
  • Machined—not stamped parts, create a stronger pulley, increasing its strength-to-weight ratio.
  • Axle is integrated into side-plates, adding additional strength and rigidity to the pulley.
  • Machined sideplates allow for a more compact design while maintaining the same rope capacity of other pulleys.
  • Utilizes high-efficiency bearings

Technical Specifications

SingleDouble
MBS30 kN36 kN
Working Load Limit5 kN8 kN
Max Rope11 mm11 mm
Weight2.9 oz5 oz

Certifications

CE

Additional information

Pulley Type

Single, Double

Industry Type

Tactical

Brand

Rock Exotica

Color

Black
