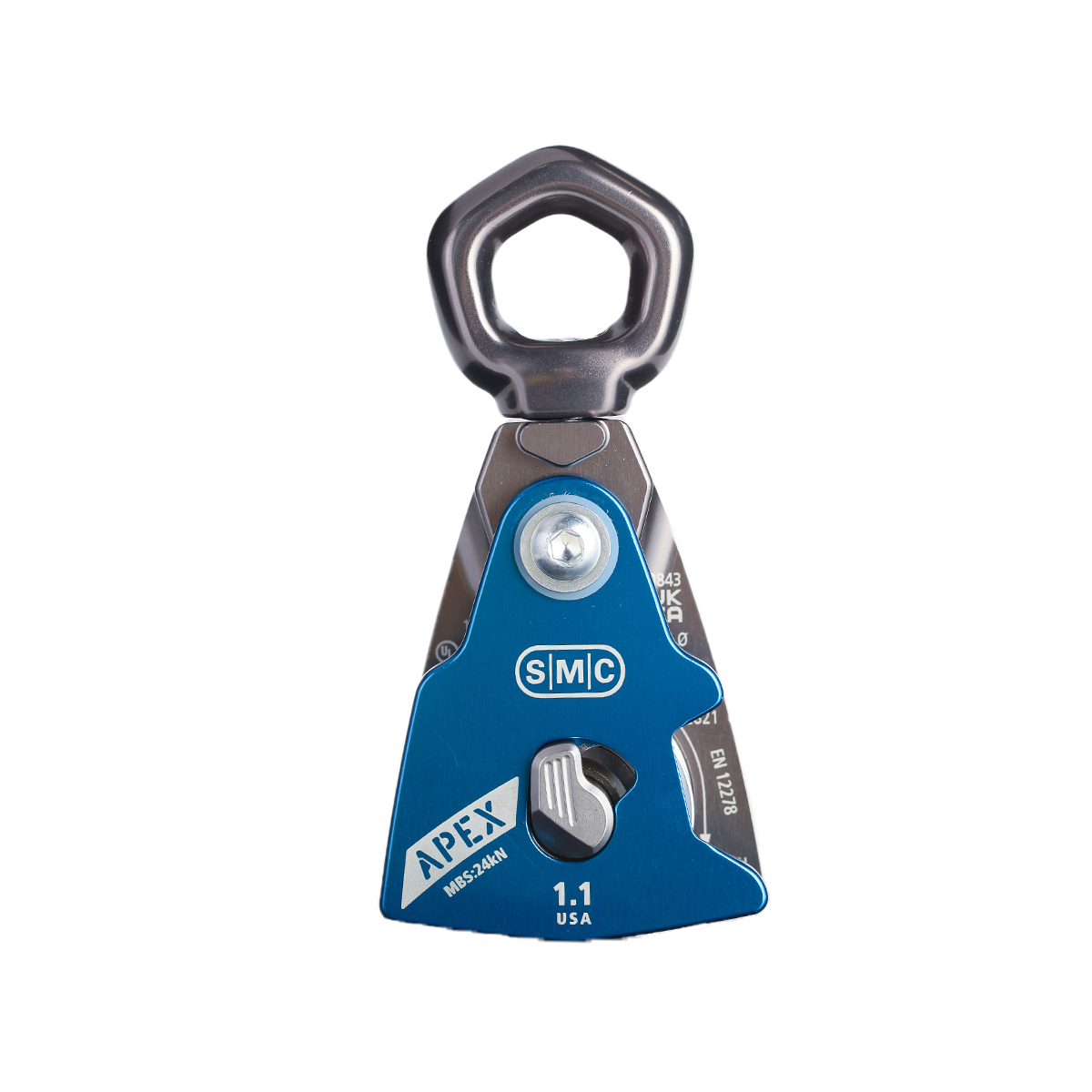

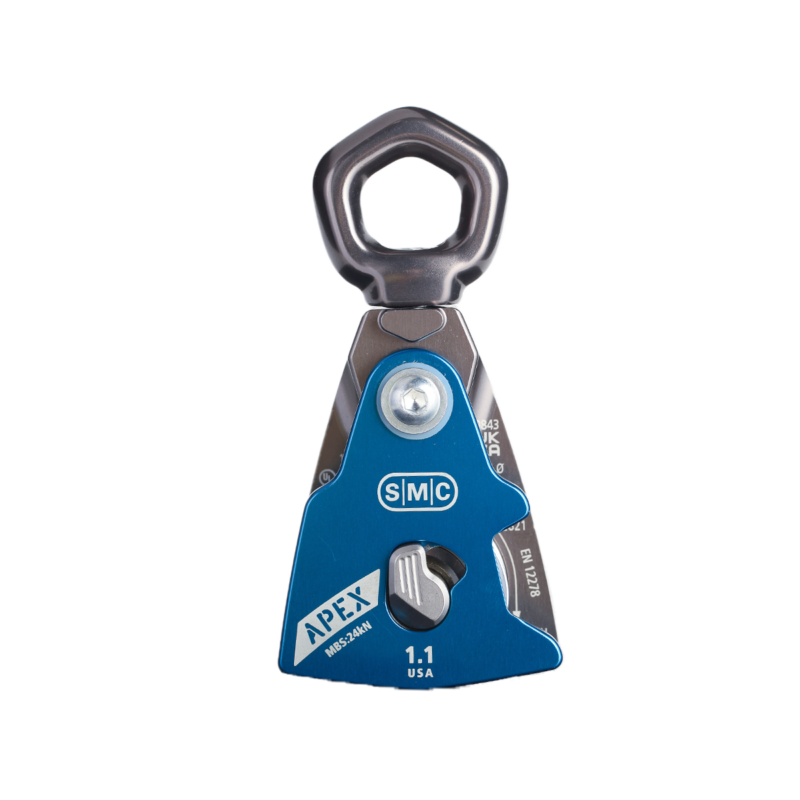

SMC 1.1″ Apex Swivel Pulley (NFPA T)

$156.92

This personal sized Apex Swivel Pulley offers both easy one-handed operation and unmatched security. The Apex is a mid-line attachable pulley that secures the rope using a low-profile, patented, triple-action lock mechanism. This lock is operated by three distinct actions: pivot the lock button, depress it, then swing open the side plate. Simply closing the side-plate re-engages the lock mechanism and solidly secures the rope.

Free shipping within Canada on all orders over $500

The operation is intuitive and ergonomic. The Apex features symmetrical side-plates which are optimized for integration with prusik-based progress capture systems. This streamlines system set-up and minimizes the possibility of mis-rigging. The swivel eye on the 1.1″ was designed to accommodate a single carabiners. It is also soft-goods-compatible for situations where you want to eliminate the carabiner altogether

Technical Specifications

Rope Compatibility Up to 13 mm
3 Sigma MBS24 kN
WLL6 kN
Sheave Major Diameter 1.1 in
Weight190 g
Dimensions 4.75 x 2.34 x 1.13 in

Certifications

NFPA T
CE
UKCA

Additional information

Pulley Type

Single

Color

Blue

Industry Type

Rescue

Certifications

Brand

SMC
